ALpharma B - Pharmaceutical boxes labellers

Integrated system for printing and applying labels to shaped cases. For labelling with both bar code labels (tags, vignettes) and tamper-evident angle labels folded along the flaps (up to 200 products/min)

This product line has a stainless-steel base and complete protective cabin.

The belt conveyor is composed of three sections with different speeds to accumulate the incoming boxes and then space them out by increasing the speed.

To the side of the loading unit are two motorised belts to align the products (speed synchronised with the first conveyor section) and another two faster ones to space out the products evenly.

The labelling is performed on two sides when the boxes are stabilised by an upper motorised belt.

The labellers (ALritma) have capacitive sensors installed to read transparent labels.

Label folding is performed by two shaped stainless steel plates and two rollers which press the folded part over the edge.

At the end of the line is an expulsion system for non-labelled products, activated by two special sensors (one for each side of the product) and a reject bin.

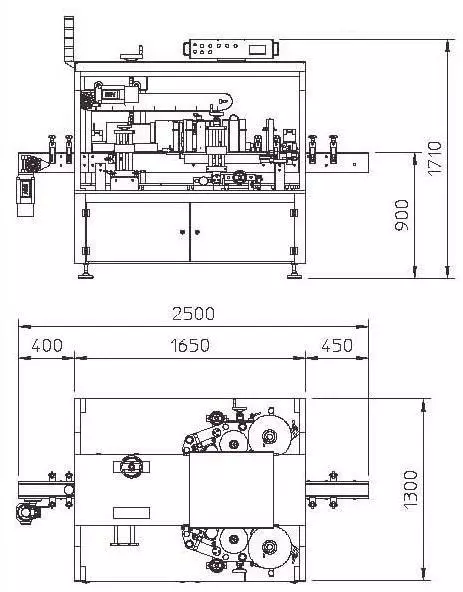

Technical specifications ALpharma B

Power supply

400V 50 Hz three-phase

Power Consumption

1 Kw

Performances

up to  200 pcs/min



Pharmaceutical labellers

ALTECH 's proven experience in designing industrial labelling machines led us to develop the ALpharma line which labels, protects and checks pharmaceutical products (vials, cases and bottles).
