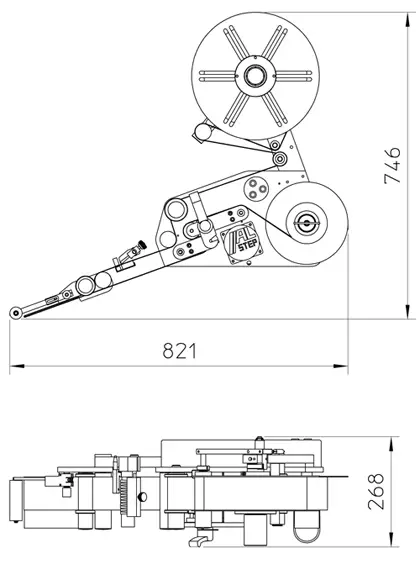

ALstep - Economical label applicator

ALstep is a compact, low-cost self-adhesive label applicator with solid and reliable mechanical components which can adapt to the most demanding industrial environments and particularly cramped spaces.

The ALstep series is available in the following versions:

  • S (maximum label width 100 mm), speed 30 m/min
  • M (maximum label width 200 mm), speed 20 m/min
  • T with integrated SATO thermal printer
  • E (lowest cost model with maximum label width 100 mm) and speed 15 m/min.

A microprocessor allows all the labelling parameters to be entered via a display and function keys and then stored in EEPROM so they are always available when the unit is turned on.

The side-access paper reel allows for fast and easy label changes.

Available Functions

  • Label pre-dispensing adjustment
  • Adjustment of label dispensing speed
  • Labelling delay adjustment
  • Automatic recovery of missing labels
  • Progressive counter
  • End-of-roll alarm and web break alarm
  • Output for connection to other systems.

Optional Accessories

ALTECH can integrate the ALstep applicator with the following devices to solve specific labelling problems:

  • Hot marker
  • Thermal transfer printer (ALstep T model)
  • Pneumatic and air-blow applicators
  • Near end-of-roll monitoring
  • Encoder speed control
  • Sensor for transparent labels.

Technical specifications ALstep E

Label Width

Max 100 mm.

Max Speed

16 m/min

Control

Contraves

Label Position

Manual

End-of-roll and web break alarm

Standard

Missing Labels Recovery

Not availabe

Pieces Counter

Not availabe

Transparent Label Sensor

Optional

Coder / TT Printer

Not availabe

Near End of Reel Check

Not availabe

Pneumatic Application

Not availabe

Encoder

Not availabe

Unwind Unit Diameter

300 mm.

Power Supply

240 V - 50 Hz

Power Consumption

400 W

ALstep S/M

Label Width

Max 100 mm.(S) - 200 mm.(M)

Max Speed

30 m/min(S) - 20 m/min(M)

Control

Display and function buttons

Label Position

Elettronic

End-of-roll and web break alarm

Standard

Missing Labels Recovery

Standard

Pieces Counter

Standard

Transparent Label Sensor

Optional

Coder / TT Printer

Optional

Near End of Reel Check

Optional

Pneumatic Application

Optional

Encoder

Optional

Unwind Unit Diameter

300 mm.

Power Supply

240 V - 50 Hz

Power Consumption

400 W



Label Applicators

Our ALstep and ALritma self-adhesive label applicators work every day in our clients' packaging lines, spread over 50 countries around the world.
